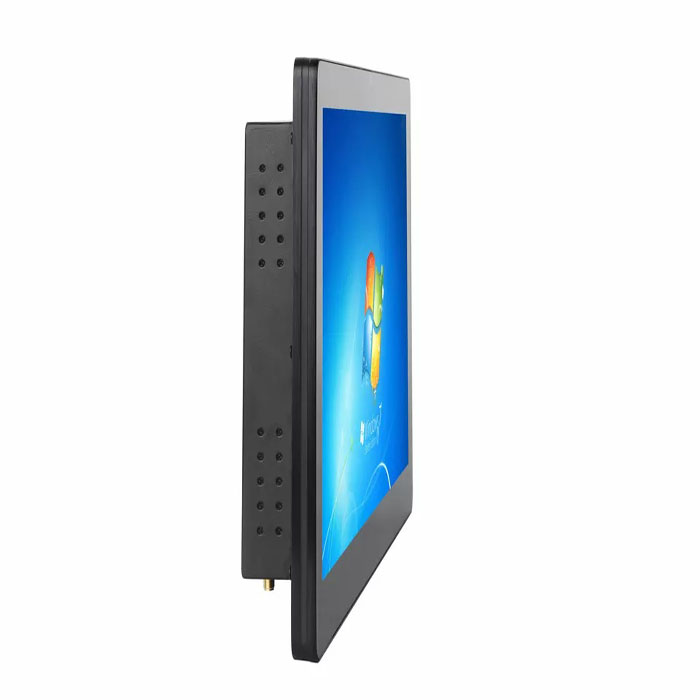

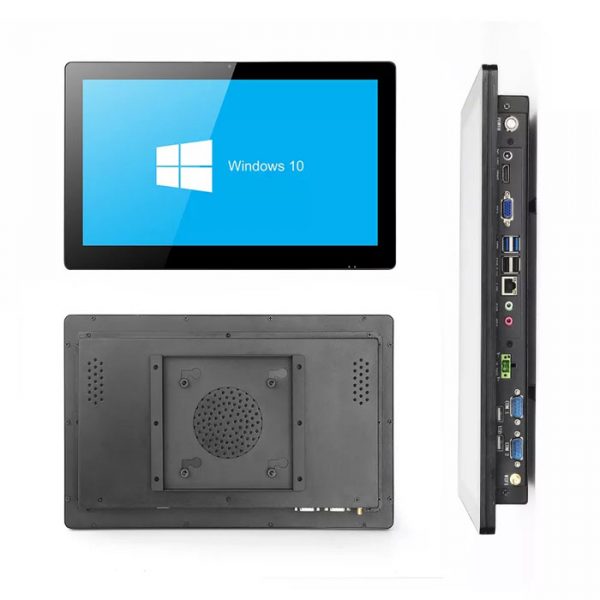

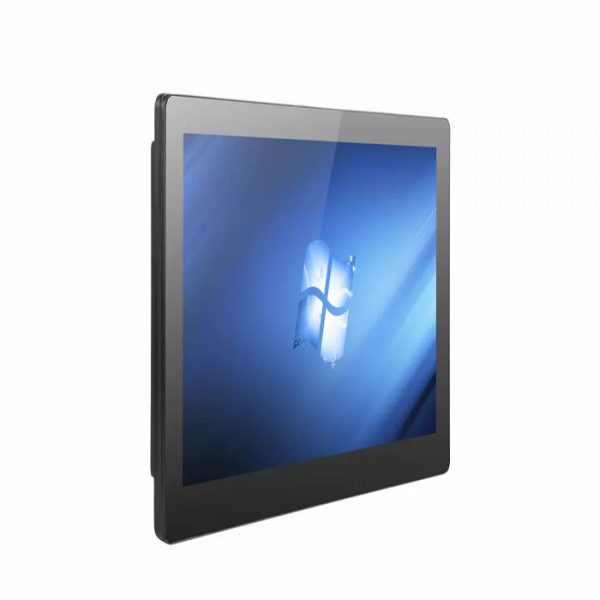

15.6″ inch 1920X1080 industrial all in one panel PC wall mounted Industrial panel PC
As a professional industrial computer manufacturer and supplier with more than 10 years of experience. We provide solutions with our product series including embedded box PC, industrial touch panel PC, waterproof panel PC, industrial multi-touch display, EN50155 certified railway industrial computer, in-vehicle computer, edge AI(artificial intelligence) GPU computer, automation controllers which support protocol like CANOpen, EtherCat, and Codesys, and Single-board computer (SBC) in response to different vertical market demands like smart transportation, security surveillance and Manufacturing Execution System (MES).
Industrial waterproof panel is a hign performance, high stability panel PC for food processing plants like dairy food and beverage plant, pharmaceutical industrial application, and other damp and harsh application environment.
A hign performance, high stability rugged panel PC, offering Capacitive (PCAP) or resistive touchscreen features.
|
PC Technical Specifications:
|
|
|
CPU Standard
|
Intel® Celeron J1900, quad core, 2.0Ghz, fanless; core i3, i5 optional
|
|
Memory
|
4GB DDR3, ( Max. 16GB)
|
|
Hard Drive Capacity
|
64GB SSD
|
|
Hard Drive Optional
|
SSD: 64GB, 128GB, 256GB
|
|
HDD: 320GB,500GB,1TB
|
|
|
Graphics
|
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
|
|
Audio
|
Realtek ALC662, High Definition Audio (HD), Line in, Line out
|
|
Network
|
1Ă—Realtek RTL 8111E Gigabit Ethernet controller
|
|

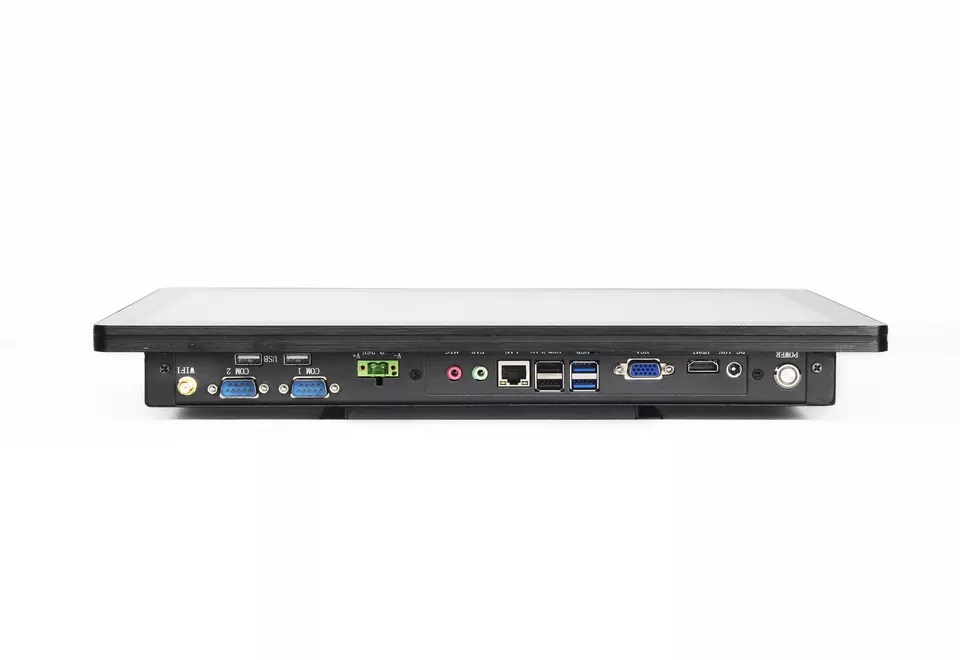

I/O Interface
|
4xUSB, 1xVGA/HDMI/LAN/MIC/EAR/DC Power, 2xCOM optional
|
|
Opetation System
|
Preinstall test version Windows 7/8/10(with license optional),Linux,Ubuntu
|
|
LCD panel
|
|
|
Panel size
|
15.6″ widescreen
|
|
Display ratio
|
16：9
|
|
Resolution
|
1920*1080
|
|
Brightness
|
250nits, 700~1000nits sunlight readable optional
|
|
Response time
|
15ms
|
|
Contrast ratio
|
1000:1
|
|
View angle
|
85°/85°/80°/80° (R/L/U/D)
|
|
Touch panel
|
|
|
Touchscreen Type
|
10 points projective Capacitive touch
|
|
Touch Interface
|
USB
|
|
Touch response time
|
<8ms
|
|
Luminousness
|
75-85%
|
|
Power Supply
|
|
|
External Power Supply
|
AC 100 – 240V
|
|
Working voltage
|
DC 12V
|
|
Power consumption
|
≤50W
|
|
Operating Environment
|
|
|
Temperature range
|
operating: -10 to 60°C, storage :-20 to 80°C
|
|
Relative humidity
|
5%~95% @ 40° C, non-condensing
|
|
Vibration
|
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
|
|
Packing Details
|
|
|
Accessories
|
Power adapter, Wifi antenna, user manual
|
|
Other
|
|
|
Mounting (options)
|
1) provide wall brackets for wall-mounting, VESA 100Ă—100mm
|
|
2) provide metal stander to support the monitor
|
|
|
Certification
|
CE, FCC
|
|
Warranty
|
1 year warranty
|
