More about the product

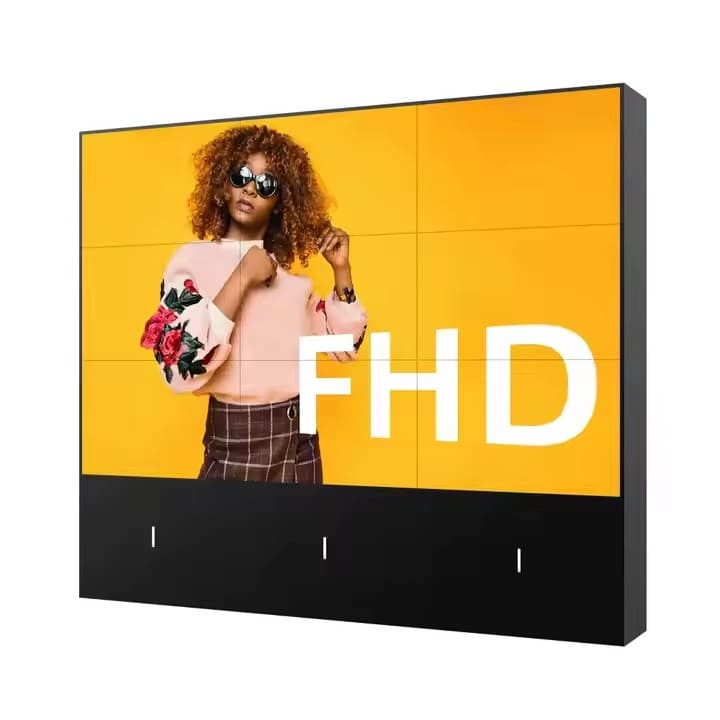

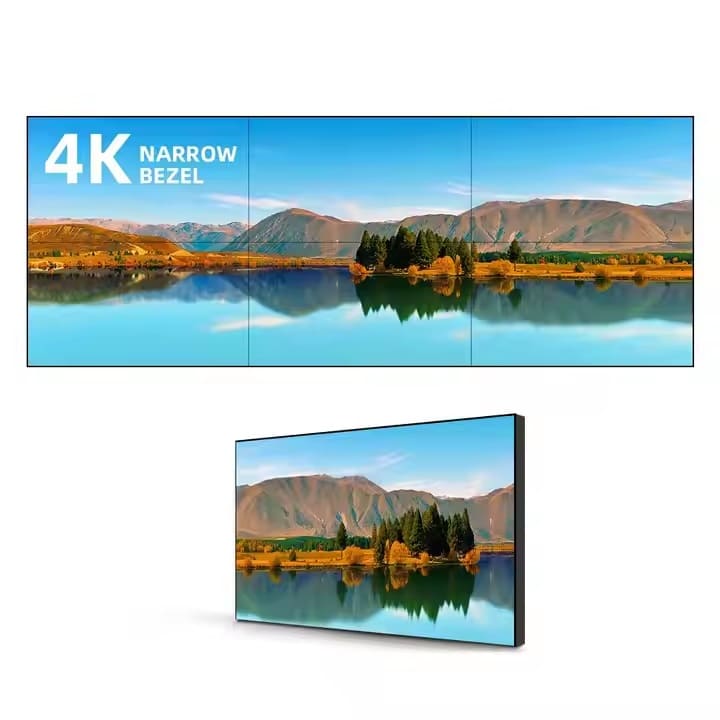

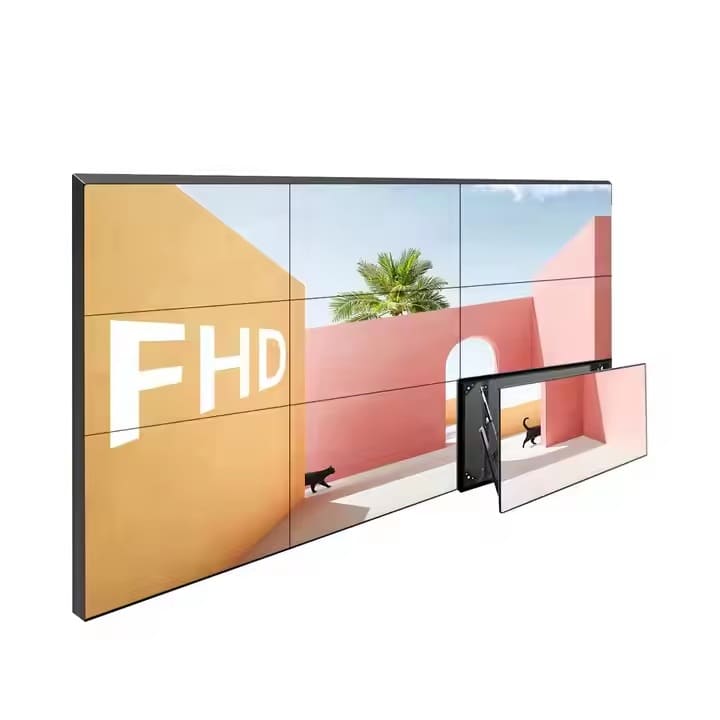

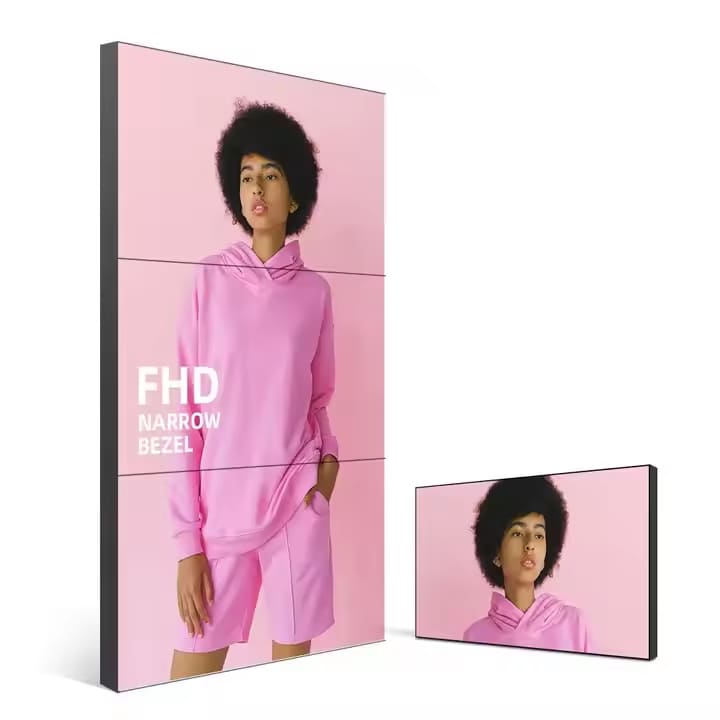

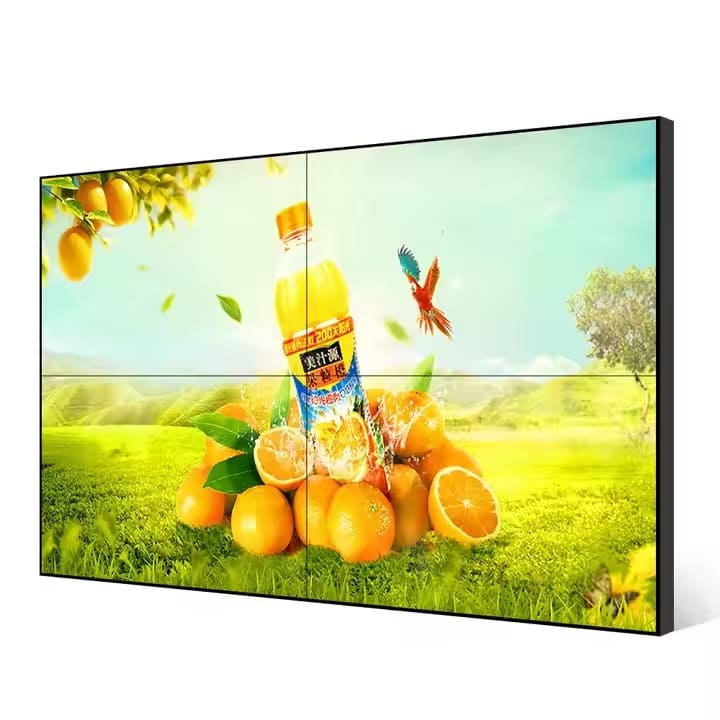

LCD Video Wall is a large display system created by combining multiple LCD (Liquid Crystal Display) screens or panels into a single, seamless visual display. These video walls are used to create impactful, high-resolution visuals for a variety of applications, including advertising, entertainment, control rooms, corporate environments, and public spaces. LCD video walls are popular due to their versatility, image quality, and ability to be customized to fit specific needs.
Elevate your vision
the pinnacle of LCD video wall technology today. Further perfecting image quality, end-user ergonomics and power efficiency, Barco UniSee II sets a new standard. The renowned bezel-less design and unique mounting structure (resulting in a virtually seamless video wall solution) remain in place, making this system perfect for use in mission-critical environments.
Product's Features
Why Choose an LCD Video Wall?
- High-Quality Visuals: Delivers stunning, high-resolution images and videos.
- Flexibility: Customizable to fit any space or application.
- Reliability: Built for continuous operation with minimal maintenance.
- Engagement: Captivates audiences with dynamic and immersive content.
- Cost-Effective: Offers a balance of performance and affordability.
Advantages of LCD video walls
Good brightness: The light output of LCD video walls is generally high – especially compared to rear-projection cubes. This allows the use in most lighting conditions - even in daylight.
Low real estate needs: Rear-projection cubes are quite deep, and (unless front access is available) need a rear maintenance area. As such, they need a lot of real estate space. LCD video walls only take the place on the wall of the panel depth and the wall mounting. This is usually less than 20 cm / 7.9
Screen sizes | 46″ 49″ 55″ 65″ 75″ |
Display resolution | 2K 1920×1080, 4K 3840×2160 optional |
Brightness | 500-700 cd/m² |
Contrast ratio | 3500:1 |
Aspect ratio | 16:9 (landscape) |
Narrow bezel | 3.5mm / 1.8mm / 0.88mm |
Viewing angles | 178° horizon,178° vertical |
Mounted Ways | Floorstanding, Wallmounted, Cabinets, Embeded |
Working hours | Over 60,000 hours |
Input power | AC 110-240V, 50/60Hz |
Power consumption | 80W – 100W |
Standby consumption | <5W |
Operating temperature | – 30°C ~ 50°C |
Operating humidity | 10% – 90% |
Operating life | >50,000hrs |
SSupplied accessories | Screws, warranty card, romote controller, power cable |
Optional function | Video wall processor |
Common Use Cases for LCD Video Walls:
Control Rooms:
Used in command centers, traffic control rooms, and security operations to monitor multiple data sources simultaneously.
Broadcast Studios:
Provides dynamic backdrops for live broadcasts, newsrooms, and sports events.
Retail and Advertising:
Captivates customers with large-scale promotional content in malls, stores, and showrooms.
Enhances brand visibility with eye-catching displays.
Corporate Environments:
Used in boardrooms, lobbies, and conference rooms for presentations, data visualization, and video conferencing.
Entertainment Venues:
Creates immersive experiences in theaters, concert halls, and sports stadiums.
Displays live feeds, replays, and event information.
Education and Training:
Enhances learning environments with large, interactive displays for classrooms and training centers.
Used for simulations, virtual tours, and collaborative projects.
Public Spaces:
Provides information, wayfinding, and advertising in airports, train stations, and city centers.
Displays real-time updates, such as schedules, weather, and news.
Museums and Exhibitions:
Showcases interactive exhibits, artwork, and educational content.
Creates engaging, large-scale visual experiences for visitors.
Benefits of LCD Video Walls:
Immersive Visual Experience:
Ultra-narrow bezels create a near-seamless display, enhancing the viewer’s immersion.
High resolution and vibrant colors ensure stunning visuals.
Scalability:
Can be customized to fit any space or application by adding or rearranging panels.
Suitable for both small and large installations.
High Reliability:
Designed for continuous operation, making them ideal for critical environments.
Long lifespan with minimal maintenance requirements.
Versatility:
Supports a wide range of content types, including videos, images, live feeds, and data visualizations.
Can be used in various industries and settings.
Cost-Effective:
Lower total cost of ownership compared to projection systems or older display technologies.
Energy-efficient design reduces operational costs.
Enhanced Engagement:
Captures attention with large, dynamic displays.
Ideal for advertising, entertainment, and interactive applications.
applications.
