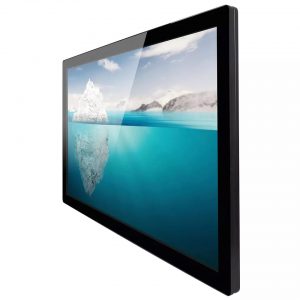

10.4 Inch Sunlight Readable LCD Displays Touch Screen

Contact us to check freight cost

Panel Type 10.4″ High Brightness LCD
Active Display Area “211.2(H)mmx158.4(V)mm
Brightness :1000cd/㎡
Contrast Ratio: 600:1(typ.)
Resolution: 800X600
Response Time: 12ms
Backlight :LED
Dimming range: 10~100%
Viewing Angle (H)-70~70 ;(V) -65~55

  • No-Risk Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments
  • Fast Delivery
  • Techinical support

10.4 Inch Sunlight Readable LCD Displays Touch Screen



SPECIAL FEATURES:

Outdoor and direct sunlight readable
Rugged construction ensures long-lasting durability
High contrast ratio
Low power consumption
Wide dimming range to meet the dim-to-black requirement
Better viewing angle compare to regular LCD
Wide range operational temperatures
Customized construction for different applications
High performance and programmable sharpening filters with Noise Coring
Easy Operation on multi-language OSD

TECHNICAL DATAS:

Model No. LMB104WM
Panel Type 10.4″ TFT Color LCD(4:3)
Active Display Area 211.1(H)mmx158.4(V)mm
Brightness 1000cd/㎡
Contrast Ratio 500:1(typ.)
Resolution 800X600
Response Time 10ms
Viewing Angle 70/70; 60/70(H/V)

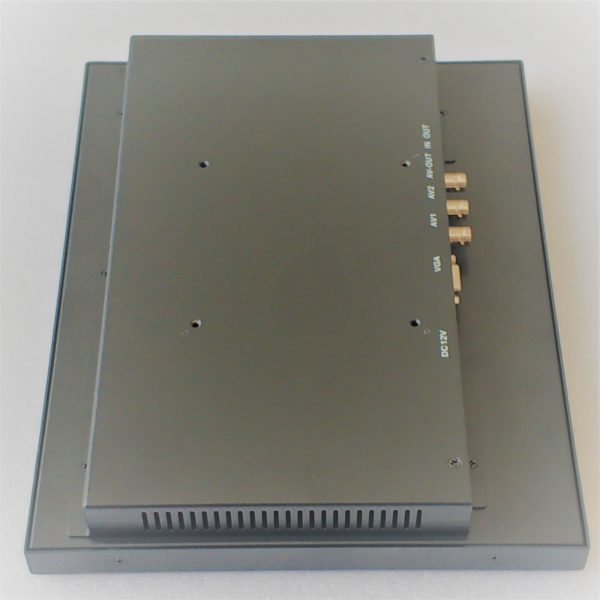

Input Signal VGA, BNC/RCA(NTSC/PAL Composite Video), HDMI, DVI, DP, USB, SDI(optional)
Touch Screen resistive, capacitive, IR is optional
Power Input DC12V/2A
Operating Method 5 keys keypad OSD or Remote
Power Consumption Max.25W
Case Material Alumium/Cool rolled steel
Net Weight 1.9kg

High Brightness
brightness could reach 1000nits, always used for outdoor and direct sunlight readable

Multipal Signal Input Is Optional
Support VGA, HDMI, DVI, BNC, USB, Audio, and SDI optional, thus could meet more requirements of clients to apply various equipment.

Touchscreen Is Optional

Resistive, capacitive, IR is optional for clients. Also accept custom made when have other requirements.

Multi-Mount Type
clients could choose mount way freely such as vesa mount, panel mount, desktop, open frame and embeded. Suitable for more applications.

Applications
· Automatic system: intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
· Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
· Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
· Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
· Non-profit Organizations: Telecommunications, post offices, hospital, schools;
· Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
· Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
