Waterproof Marine LCD Displays 10.4 Inch

Contact us to check freight cost

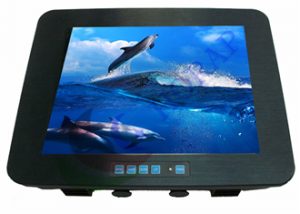

10.4 Inch Waterproof LCD Screen
Model number: LMS104FW
Active display area: 211.2(H)mmx158.4(V)mm
Resolution: 800*600/1024*768(optional)
Brightness: 300 Nits/1000 nits(optional)
Contrast ratio: 400:1
Response time: 12ms
Viewing angle: -70~70(H) ; -65~55(V)

  • No-Risk Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments
  • Fast Delivery
  • Techinical support

Waterproof Marine LCD Displays 10.4 Inch





Product Parameter of 10.4 Inch Waterproof LCD Screen

Model No. LMS104FW
Panel Type 10.4″ TFT Color LCD
Active Display Area 211.2(H)mmx158.4(V)mm
Brightness 300cd/㎡      1000cd/㎡ (optional)
Contrast Ratio 400:1(typ.)
Resolution 800*600       1024*768(optional)
Response Time 12ms
Viewing Angle -70~70(H) ; -65~55(V)
Input Signal VGA, NTSC/PAL Composite Video, BNC/RCA, HDMI, USB
Touch Screen resistive, capacitive, IR is optional
Power Input DC9-36V, AC110V-240V
Operating Method 5 keys keypad OSD or Remote
Power Consumption Max.25W
Case Material Front: Alumium    Rear:Cool rolled steel
Protection Level Front IP65/Full IP65 optional
Net Weight 3.2kg

HORAP MARINE LCD DISPLAY FEATURES:

HMI Screen: projected capacitive, multi-touch Glass+Glass HMI, nimble touch, high light transmittance, anti-scratching, no drifting.

Strong CPU: ARM Cortex A8 processor, high speed and easy flow, supporting animation formats(including BMP, JPG, GIF, PNP…etc, can be imported and displayed directly.

PCB Coating Protection: enhance the strength of damp proof, dust proof, corrision resistance in harsh environment. Including Three anti-paint.

Email Alert Function: supporting any the run-time error to send through by gmail to provide users with real-time monitoring at all the time.

VNC control: Supporting to control HMI through PC or Mobile App to realize more intuitive and convenient operation.

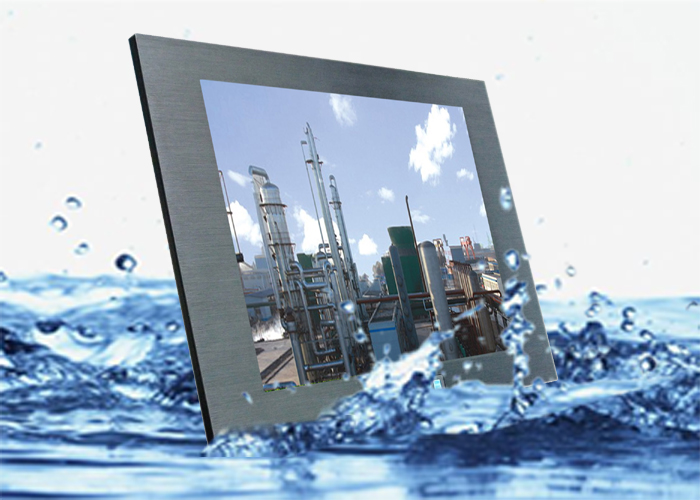

Waterproof IP65
embedded structure, aluminum material front cover, toughened glass or 3H waterproof touch screen fixed on panel front. In front side, rugged military lcd display is completely up to the IP65 standard. Designed specially to be applied in marine vessels, oil tankers, cruise ships, maritime operations and other maritime equipment.

High Brightness Optional
Clients also could choose high brightness, and support to adjust by keyboard for both outdoor and indoor.

Wide Voltage DC9V~36V
standard is DC9V~36V, AC 110~240V, could meet requirements of different voltage requirements
