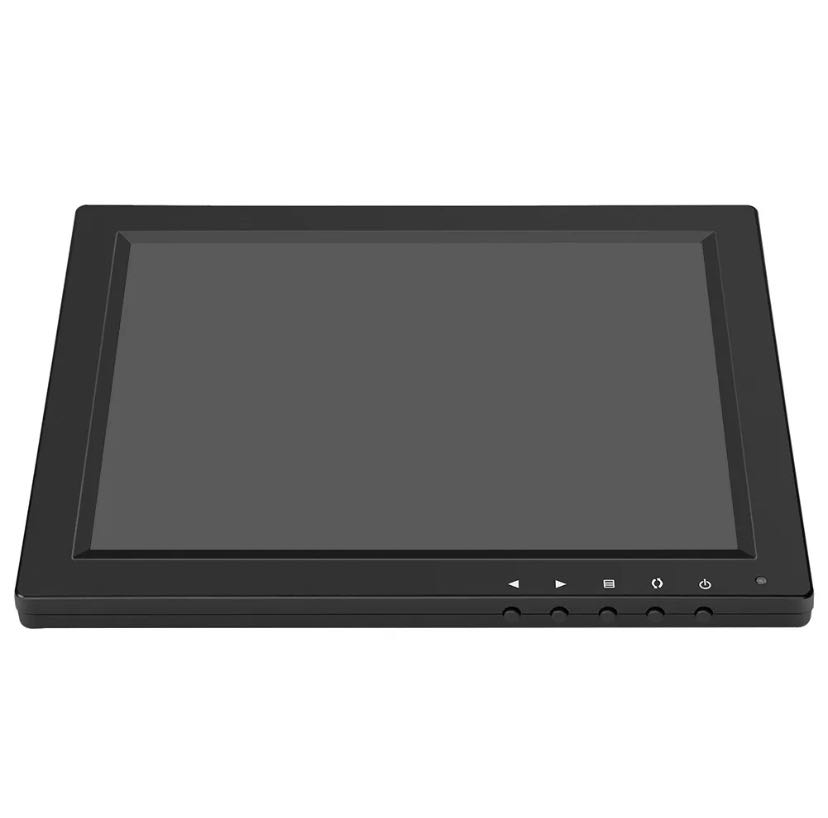

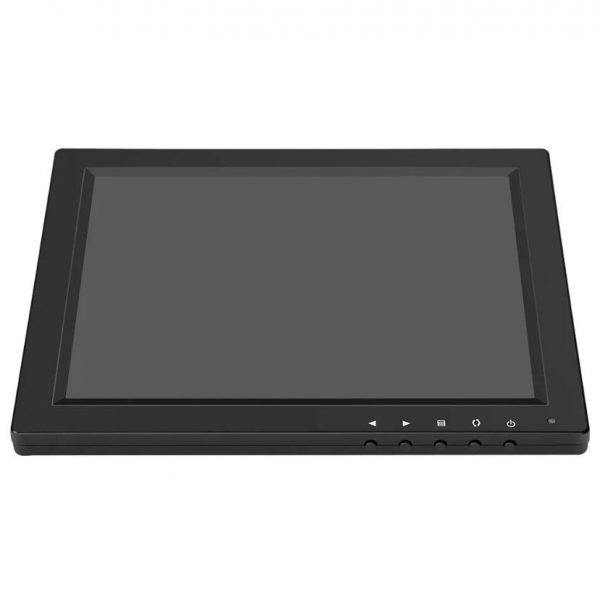

Rugged 24 Inch LCD Security Screen 1080P
WHAT IS SECURITY MONITOR?
A security monitor, also known as a surveillance monitor or a CCTV monitor, is a screen that can display the event live or recorded video footage from the security cameras or systems through connecting with the DVR or NVR devices. The high performance, long-term reliability, and flexible connectivity make a security monitor better meet the diverse requirements of any video surveillance environment.
CCTV Monitors
CCTV Monitor is one of the most important elements of CCTV systems that provide real-time feedback from CCTV cameras and security surveillance equipment. CCTV cameras digital signal needs to be converted into a visual picture and this can happen thanks to the specially designed monitors. These CCTV screens are more than regular HDMI or VGA supporting screens. CCTV monitors are also fitted with BNC connectors that allow for camera-monitor connection.
Modern CCTV monitors are available in various types, such as:
LED monitors
LCD monitors
TFT monitors
All of them offer multiple connectors that suit a wide variety of surveillance equipment including CCTV cameras, DVRs and HD recorders.
Product Parameter of Rugged 24 Inch LCD Security Screen 1080P
| Model No. | LMC240H |
| Panel Type | 24″ TFT Color LCD |
| Active Display Area | 531.36 × 298.89 mm (H×V) |
| Brightness | 300cd/㎡ |
| Contrast Ratio | 1000:1(typ.) |
| Resolution | 1920*1080 |
| Response Time | 5ms |
| Viewing Angle | 85/85/80/80 |
| Input Signal | VGA， NTSC/PAL Composite Video, BNC/RCA, HDMI, USB |
| Touch Screen | resistive, capacitive, IR is optional |
| Power Input | DC12V/DC9-36V, AC110V-240V |
| Operating Method | 5 keys keypad OSD or Remote |
| Power Consumption | Max.55W |
| Case Material | Plastic/Cool rolled steel |
| Net Weight | 7.9kg |
