More about the product

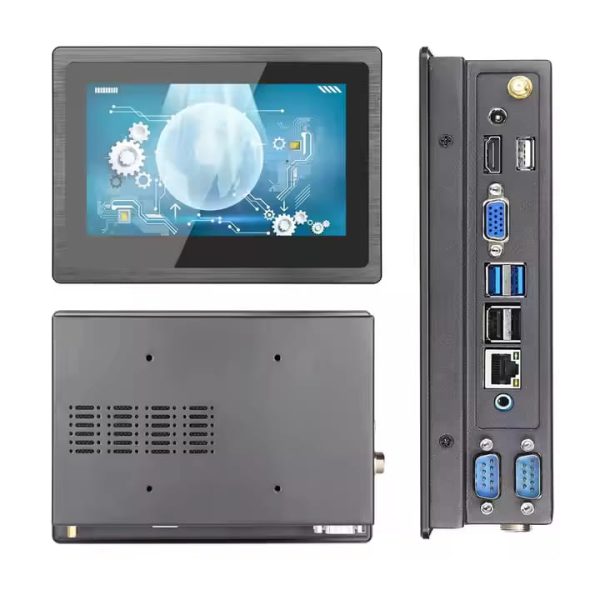

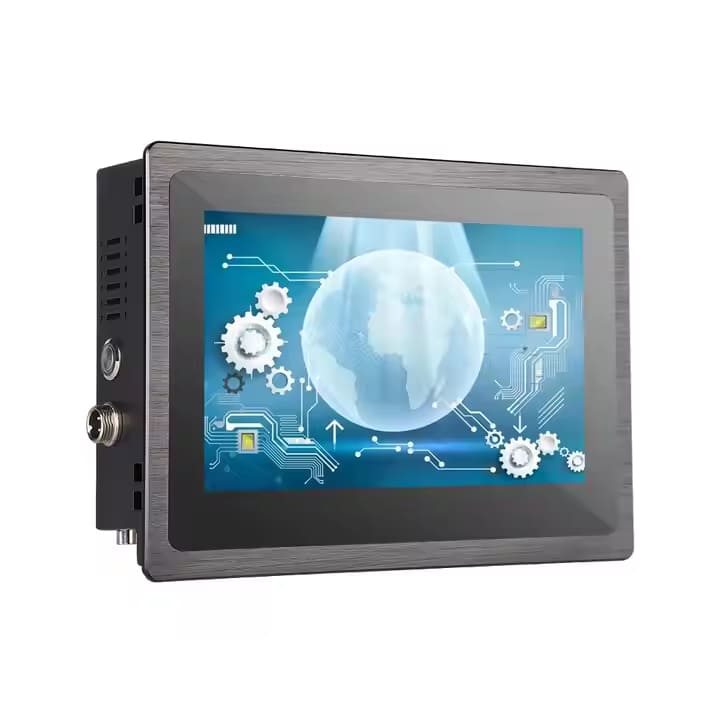

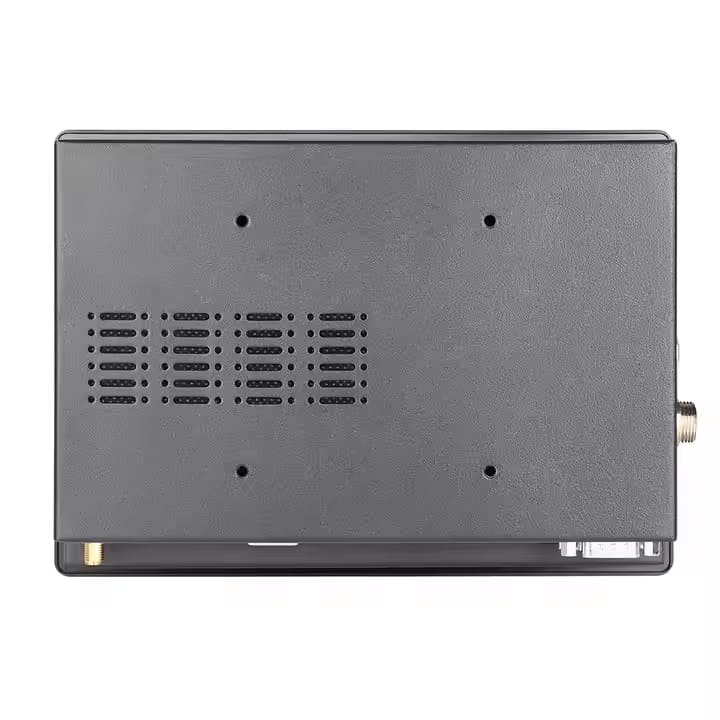

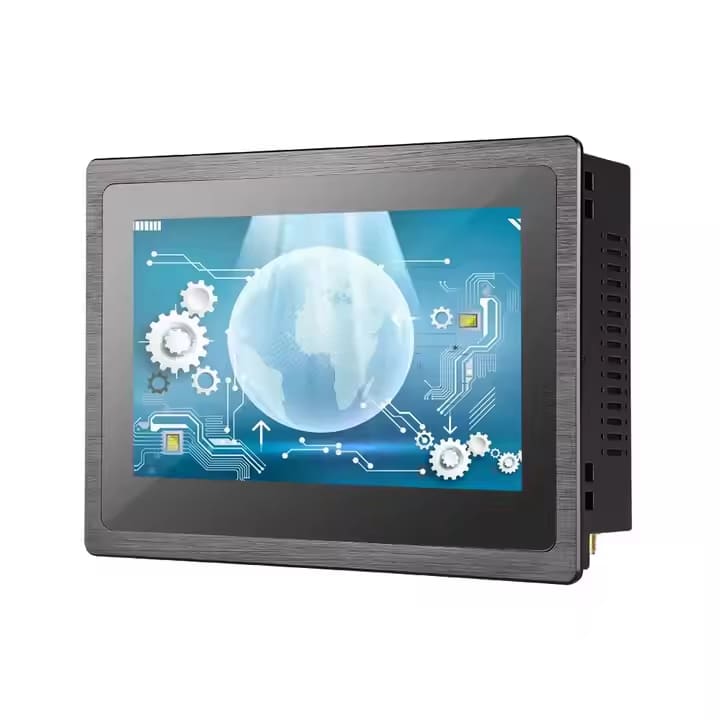

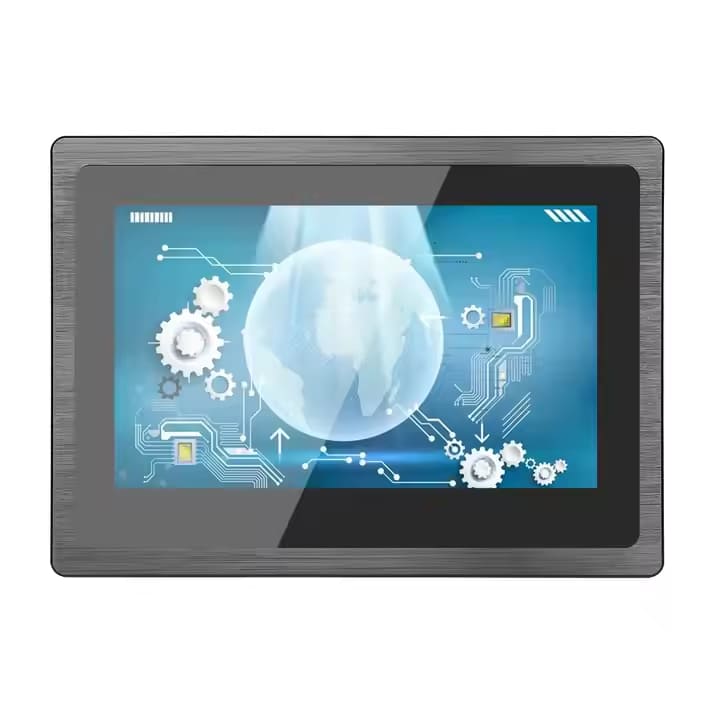

An Outdoor Rugged Marine Monitor is a high-performance display device specifically engineered to endure the extreme conditions of marine environments. These monitors are built to resist water, salt spray, UV radiation, and mechanical shocks, making them ideal for use on ships, offshore platforms, and other marine applications. They are commonly used for navigation, surveillance, and control systems, providing critical information to crew members and operators.
Sunlight Readability
Outdoor Rugged Marine Monitors are equipped with high-brightness displays and anti-reflective coatings to ensure readability in direct sunlight. This feature is crucial for outdoor applications where glare and reflections can obscure the screen.
Product's Features
Outdoor Rugged Marine Monitors represent a critical advancement in the field of marine technology, offering durable and reliable displays for navigation, monitoring, and control in harsh marine environments
- Durability and Resilience: Outdoor Rugged Marine Monitors are constructed with robust materials that can withstand the harsh conditions of marine environments. They are typically rated for high levels of ingress protection (IP66 or higher), ensuring resistance to water and dust. Additionally, they are designed to resist corrosion from salt spray and UV radiation, ensuring long-term reliability.
- High-Resolution Displays: These monitors feature high-resolution screens that provide clear and detailed visuals, essential for navigation and monitoring tasks. The clarity of the display ensures that operators can easily read and interpret information, even in bright sunlight or low-light conditions
- Wide Temperature Range: These monitors are designed to operate reliably in a wide range of temperatures, from freezing cold to extreme heat. This ensures consistent performance in varying weather conditions, from Arctic waters to tropical seas.
Shock and Vibration Resistance
Marine environments are subject to constant motion and mechanical shocks. Outdoor Rugged Marine Monitors are built to withstand these conditions, with reinforced structures and shock-absorbing mounts that ensure stable and reliable operation.
Integration with Marine Systems: These monitors are designed to integrate seamlessly with various marine systems, including radar, sonar, GPS, and engine monitoring systems. This integration allows for real-time monitoring and control of critical marine operations.
LCD panel( IPS screen) | |
Panel size | 7” 8” 10” 12” 13.3”15” 15.6” 17” 19” 21.5” |
Native Resolution | 1024*600 1024*768 1280*800 1440*900 1920*1080 optional |
Brightness (cd/m²) | 250cd/m2 1000cd/m2 1500cd/m2 optional |
Contrast ratio | 1000:1 |
View angle | 85°/85°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 points Projected capacitive touch (4/5-wire resistive touch optional) |
Touch Interface | USB |

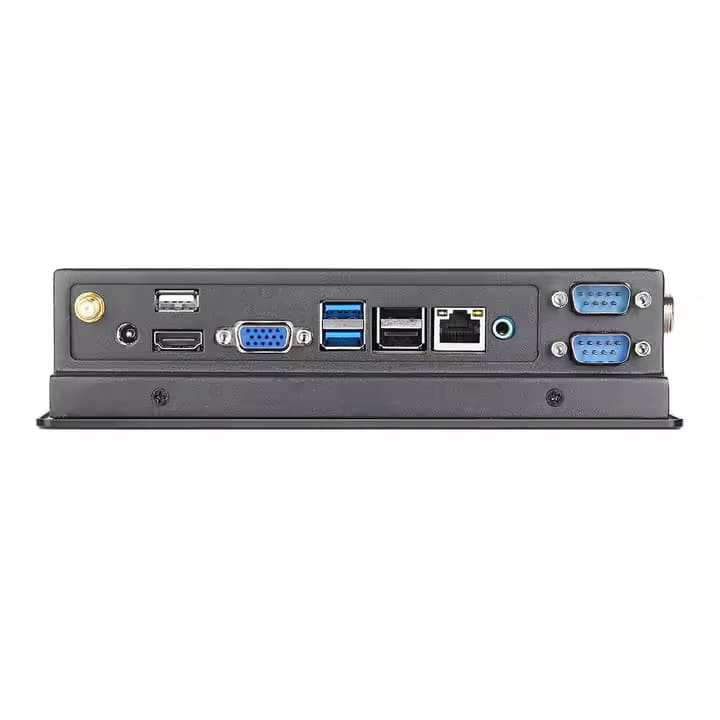

Signal Ports | |
VGA | 1×VGA |
USB | 1xUSB for touch |
HDMI | 1xHDMl |
DVI | 1XDVI Optional |
OSD | |
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
Power Supply | |
External Power Supply | AC 100 – 240V |
Working voltage | DC 12V |
Power consumption | ≤30W |
Operating Environment | |
Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity | operating: 10% to 90% , storage :5% to 90% |
Packing Details | |
Packing detail | 1pcs/box 2pieces/carton |
Accessories | Power adapter, VGA cable,HDMl cable,USB touch cable, Stander optional |
Others | |
Warranty | 1 year warranty |
Applications of Outdoor Rugged Marine Monitors
Navigation and Bridge Systems: On ships and vessels, Outdoor Rugged Marine Monitors are used in bridge systems to display navigation charts, radar images, and GPS data. They provide critical information to the crew, ensuring safe and efficient navigation.
Surveillance and Security: These monitors are used in surveillance systems to display live feeds from cameras and sensors, enhancing security and situational awareness on board. They are essential for monitoring both the vessel’s surroundings and internal areas.
Engine and Machinery Monitoring: In engine rooms and control centers, Outdoor Rugged Marine Monitors are used to display real-time data on engine performance, fuel consumption, and machinery status. This information is crucial for maintaining optimal operation and preventing mechanical failures.
Offshore Platforms: On offshore oil and gas platforms, these monitors are used for monitoring and controlling drilling operations, safety systems, and environmental conditions. They provide critical information to operators, ensuring safe and efficient operations in challenging offshore environments.
Fishery and Research Vessels: In fishery and research vessels, Outdoor Rugged Marine Monitors are used for monitoring fishing operations, scientific data collection, and environmental monitoring. They provide reliable and clear displays for various operational and research tasks.
Military and Defense: In naval and defense applications, these monitors are used for mission-critical tasks, including navigation, surveillance, and weapon systems control. Their durability and reliability are essential for ensuring mission success in demanding conditions.
