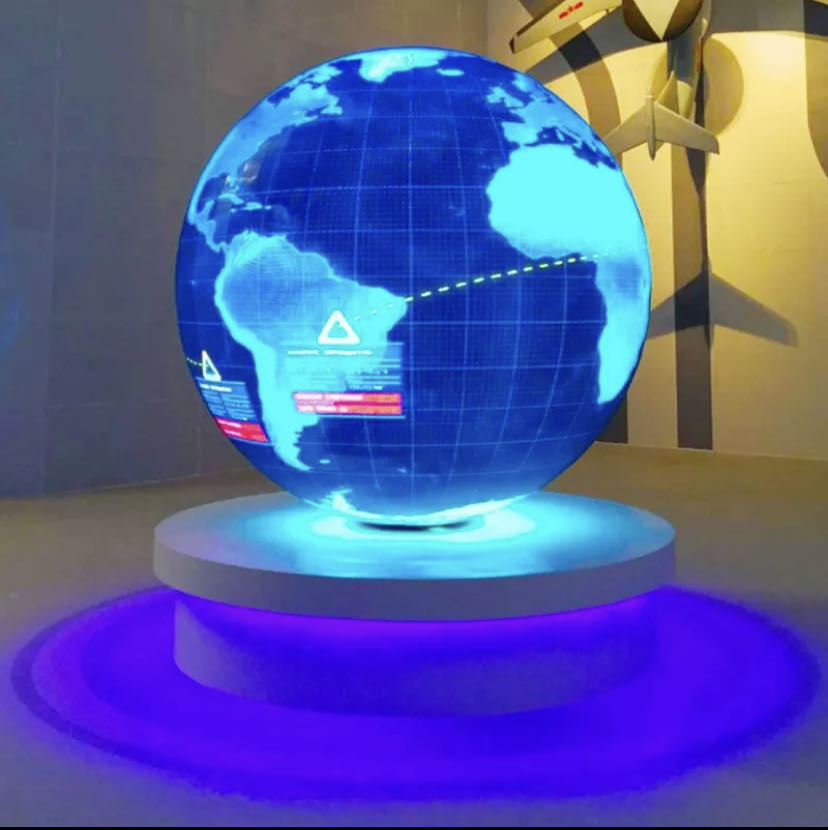

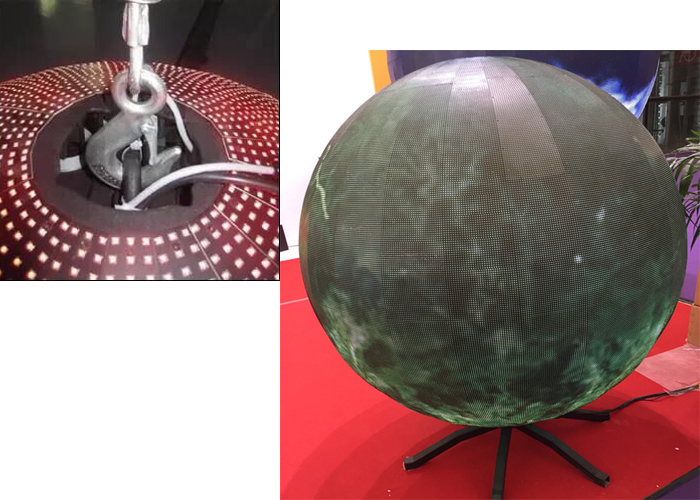

Ball LED Screen Parameter / spherical led display
LED screen can be fully used to replace traditional advertising media tools, furthermore LED video wall has unmatched display and visual experience. Horap develop the LED ball display under these conditions.With the high difficulties on the design and production, LED global display is an important milestone in the development of the LED display. The main features below:
1. Brightness: 1200 nits to 5500 nits
2. refresh rate could reach 1920Hz, contrast ratio 4000:1 and high grey scale level give you vivid pictures on global screen.
3. Super viewing angle: perfect viewing angle with 360 degree
4. Applicaton: indoor or outdoor
5. Effect:The creative appearance and wonderful showing effect attracts most attention during the usage.
TECHNICAL SPECIFICATIONS:
Usage
|
indoor
|
indoor
|
indoor
|
indoor
|
Pixel Pitch
|
1.8mm
|
2.5mm
|
3mm
|
4mm
|
LED Type
|
HORAP1515
|
HORAP2020
|
HORAP2020
|
HORAP2020
|
Physical Density
|
284000 dot/m²
|
160000 dot/m²
|
111111 dot/m²
|
62500 dot/m²
|
Scanning Mode
|
1/43
|
1/32
|
1/32
|
1/16
|
Spherical diameter
|
0.8m/1m/1.2m/1.5m/1.8m/2m/2.5m/3m/4m/5m/6m(Arbitrary diameter)
|
|||
Panel Material
|
iron
|
|||
Panel Weight
|
30kg/㎡
|
|||
Panel Flatness
|
≤0.10 mm
|
|||
Brightness
|
≥800 cd/㎡
|
|||
Viewing Angle
|
≥140° (H) / 140° (V)
|
|||
Refresh Rate
|
1920-3840Hz
|
|||
Input Voltage AC
|
110~220V
|
|||
Max. Power Consumption
|
≤700 w/㎡
|
|||
Ave. Power Consumption
|
≤300 w/㎡
|
|||
Working Temperature
|
-10℃~+40℃
|
|||
Working Humidity
|
10%~90%RH
|
|||
Lifespan
|
≥100,000 hrs
|
FEATURED ADVANTAGES OF LED DISPLAY

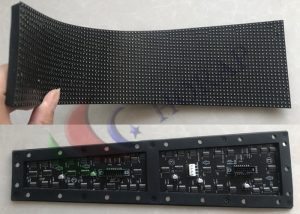

Soft LED Module
soft PCB board and soft shell is used on led ball screen, and there is not screws and mask, could guarantee the flatness of global suface and can achieve seamless splicing. IC MBI5124 is used, could guarantee good performance of picture.

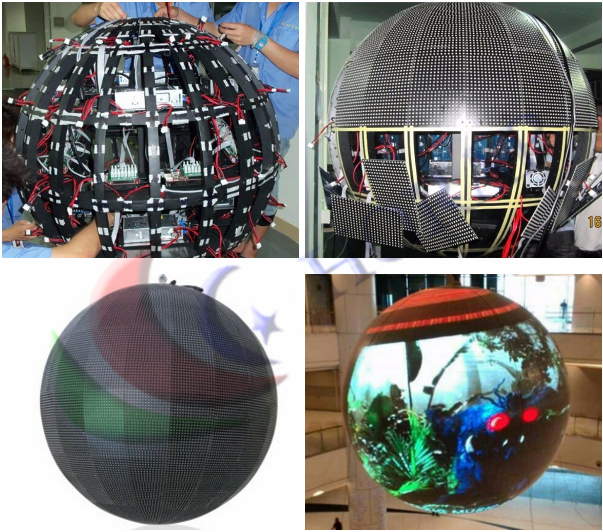

Magnet Design
led module is assembled onto cabinet by magnet, front maintenance is very convenient, thus save your much time and cost for repairment.Good cooling, insurance the led ball stability.
Customized:Can be customized required as any sizes and any pixel pitches.

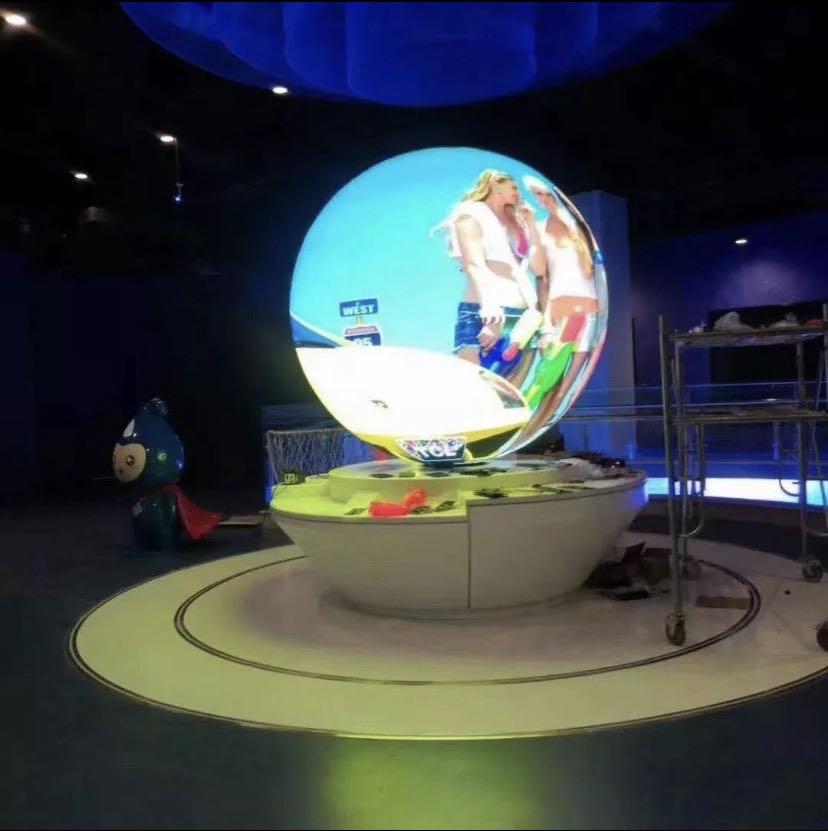

Application: Museum Planetarium Exhibition Sports Stadium Airport Hotel Railway Station Shopping Mall Bar and etc.
